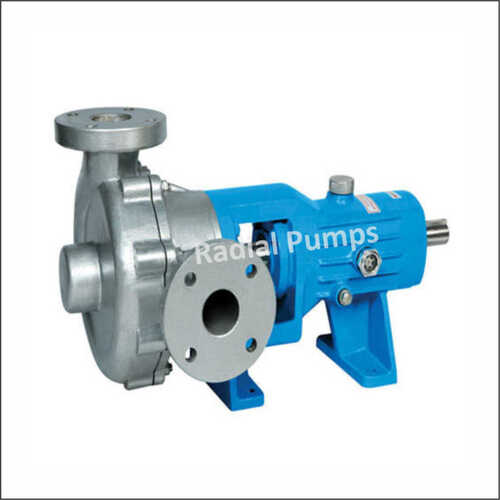

Single Stage Filter Press Feed Pump

Product Description

Operating Range

Capacity            :  Up to 200 M3/hr

Head                 :  Up to 100 mtr

Discharge Size :  40 mm to 100 mm

Temperature     :  Up to 140C

Pressure           :  Up to 10 Kg/cm2

Speed               :  Up to 3500 rpm

Materialof Construction

C. I, C.S,SS-304 / 304L, SS316 / 316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C,etc.

Duplex stainless steel, super duplexstainless steel

Applications

• Filter press feeding. Slurry transfer.
• Waste Water treatment plant (ETP/STP).
• Evaporator and Scrubber application.
• Dyes & Intermediates, Steel Rolling mills.
• Pulp & Paper, Sugar, Salt, Starch industries.
• Zink & Copper plant.
• Ceramic, General industrial services.

Features

• Single stage semi open impeller.
• Special design for filter press application.
• Heavy duty shaft, sleeve & bearings.
• Noise & maintenance free.
• Long life due to replaceable wearing parts..
• High efficiency, low power consumption.
• Semi open impeller provides axial balancing.
• Grease / oil lubricant bearings.
• Only positive (+V) suction head.
• Suitable with V-belt drive or direct coupled with a motor.
• Foot and centerline mounting options.
• Can be supplied bare-shaft or with IE3 motors for energy saving.
